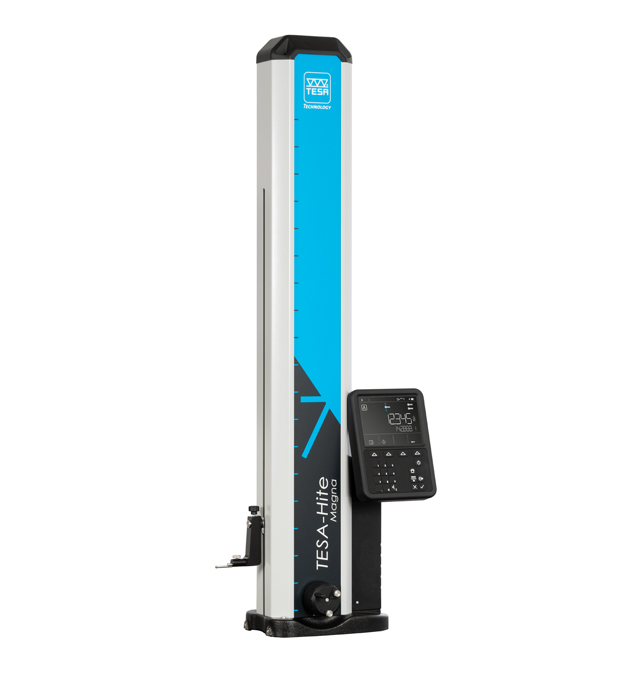

TESA-HITE Magna

Equipped with the patented Magna-µ-System measuring system, these 1D manual height gauges are particularly suitable for harsh conditions. Thanks to their robustness and their high protection level, they are very robust and specifically designed for rough production environments where a high penetration of dust particles and the frequent splashing of liquids (water, oil etc.) are common.



Panel

  • Protected against the penetration of liquids or dust (IP65)
  • Big colour screen for better reading in dimly lit surroundings
  • Black display background for excellent contrast
  • Large numbers displayed on the screen (21 mm) for optimal readability
  • Keyboard with few buttons for easy learning without confusion



Autonomy

  • Long battery life (60h) to avoid too frequent recharging



Measurement

  • Philosophy of use similar to tablets or smartphones
  • Quick access to the first measurement from start up (<4s) for a significant time saving
  • Magnetic measuring system (patented) ensuring functioning in the extreme conditions of the workshop
  • QUICKCENTER DYNAMIC technology integrated to efficiently determine the culmination points
  • Context-based online help to avoid incorrect use and bad results
  • The interface can be customized according to the user's wishes



SCS Calibration Certificate

  • Free SCS certificate provided to avoid additional costs for re-calibration at the initial purchase

Would you like a consultation or do you have questions? Contact us: Contact.

Technical Data

Type Functions Travel Area of application Uncertainty of measurement Repeatability Resolution Probing force Weight Degree of protection Screen Digit size Data output Power supply Battery life Included in delivery Particular characteristic
TESA-Hite Magna 400 Manual displacement of the measuring probe 400 mm 415 mm 8.0 μm 3.0 μm (level) 5.0 μm (arc) 0.01 / 0.001 / 0.0001 1.5 ± 0.5 N 15 kg Measuring system: IP55; Panel: IP 65 92 x 121 mm 10 x 21 mm TLC External power supply or integr. recharg. battery 60 hours SCS calibration certificate; Decl. of conformity Integrated fine adjustment
TESA-Hite Magna 700 Manual displacement of the measuring probe 700 mm 715 mm 8.0 μm 3.0 μm (level) 5.0 μm (arc) 0.01 / 0.001 / 0.0001 1.5 ± 0.5 N 18 kg Measuring system: IP55; Panel: IP 65 92 x 121 mm 10 x 21 mm TLC External power supply or integr. recharg. battery 60 hours SCS calibration certificate; Decl. of conformity Integrated fine adjustment
