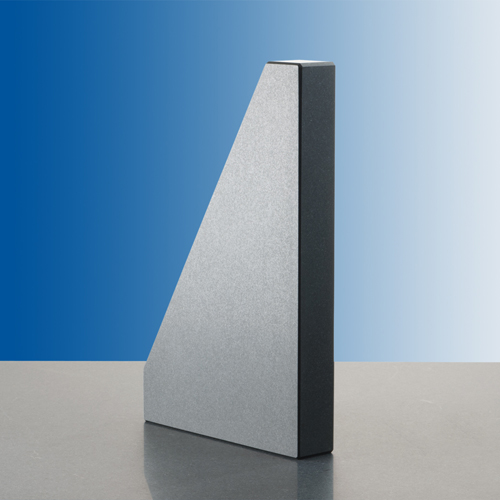

Test Angle K1

The test angle K1 has two even measuring surfaces, arranged orthogonal to each other. The measuring surfaces are lapped finely and in highest accuracy. The accuracies are, depending on the customer demand, between DIN 876/00 (4 µm at L 1000 mm) and DIN 876/00000 (0.5 µm at L 1000 mm).



Important: At our test angles also the side faces are processed. They match geometrically to the measuring surfaces, so that the angle is also while lying truly correct.



Technical Data

Type Dimensions (L×W×H) Measuring length Squareness Weight
K1-500 510 × 310 × 60 mm 500 × 300 mm 2.0 µm 16.7 kg
K1-1000 1010 × 610 × 100 mm 1000 × 600 mm 3.0 µm 95.6 kg

Incl. calibration certificate SCS (ISO/ IEC 17025).

For other dimensions and accuracies please contact us: Contact.
